Detailed Product Description
Type: Stainless Steel U Bends / U Tube Material Grade: 304/304L/304H,316/316L,316Ti,321,309S,310S,317L,321H,347H,2205,S31803,2507,904L
Standard: ASTM A312,ASTM A269, ASME SA213, ASTM A249 ,ASME SA249, ASTM A789, EN10216-5 A106/A1016M Outer Diameter: 12.7mm - 38.1mm
Wall Thickness: 0.89mm - 2.77mm Application: Widely Used In Heat-exchanger Systems
Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg) Bending Radius: 1.5*OD-1500mm




Quick Detail:



Stainless Steel U Bend Tube ASME SA249/A688, ASME SA213 TP304 / TP304L / TP304H / TP321/TP310S



Dimensions:



OD:12.7mm---38.1mm

WT: 0.89~2.77mm

Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm

When Ordering Tubes With Radius less or equal to 1.5*OD, It Is Necessary To Agree Precision Of Geometrics.

Straight Tubes Maximum Length:(Before Bending): 35000 mm.

Leg Length: Min 1 Meter, Max. 16500 mm (For Max R=1500mm)

Note: Other Size Are Available Upon Agreement.

Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).



"U" Stainless Steel Tubes are manufactured in our plant as per the customer requirements. Bend can be Heat Treated in accordance with Client's Requirements followed by hydrostatic testing and dye penetrant testing if required.

U-bend stainless steel tubes are widely used in heat-exchanger systems.Heat exchanger equipment on the basis of seamless stainless U-tubes is essential in strategically important and critical fields-nuclear and petro-chemical machine building.

Utube heat exchangers Designed for high temperature applications,especially for steam  condensing or hot oil systems.This model is selected when differential expansion makes a fixed tube sheet exchanger unsuitable and when conditions preclude a floating head type(HPF) selection.


Standard: ASTM A312,ASTM A269, ASME SA213, ASTM A249 ,ASME SA249, ASTM A789, EN10216-5 A106/A1016M



Initial Length: Maximum Lengths of 27000mm can be supplied on request.

Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm

When Ordering Tubes With Radius less or equal to 1.5*OD, It Is Necessary To Agree Precision Of Geometrics.

Straight Tubes Maximum Length:(Before Bending): 35000 mm.

Leg Length: Min 1 Meter, Max. 16500 mm (For Max R=1500mm)

Note: Other Size Are Available Upon Agreement.

Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).





The basic Testing and processing:



1.High Pressure hydrostatic Test:Minimum:10 Mpa--25Mpa

2.Air Under Water Test After Bending

3.U Tube wall thickness Test

4.Eddy Current Test Before U bend Formed

5.Ultrasonic test before U bend Formed

6.Heat Treatment to stress relieved

7.Ball passing Test





The  below sizes are those most frequently used,other sizes can be produced upon request.



Grade(UNS)

304/304L/304H(1.4301/1.4306/1.4948);316/316L(1.4401/1.4404);316Ti(1.4571)321(1.4541);309S(1.4833);310S(1.4845);

317L(1.4438);321H(1.4878);347H(1.4550)2205(1.4462),S31803,2507,904L

Outside Dia:

12.7mm--38.1mm(0.625"--1.252")

Wall thickness:

0.89--2.77mm

Standards(Norm):

ASTM A688 Standard for U bend Stainless steel Tube; ASTM A566



EN 10216-5,DIN 17456,DIN 17458



GB/T 14975,T 14976,T 13296,GB 5310



ASTM A213,A 269,A312,A511,A789,A790



JIS G3459 ,G3463



GOST 9940,GOST 9941





Specialty and Advantages

  1. Our company has been dedicated to producing stainless steel seamless pipe since 2003, owning complete producing technology and abundant managing experience.
  2. The raw material such as mother tube, round bar we use is from Chinese biggest and well-known steel mill: Bao Steel and Yongxing Steel.
  3. We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test, Hydraulic test and so on.
  4. We have ISO 9001 certificate, and the Third Party Inspection Certificates such as TUV, BV, Lloyd’s, SGS, etc, also can be provided according to customers’ requirements,

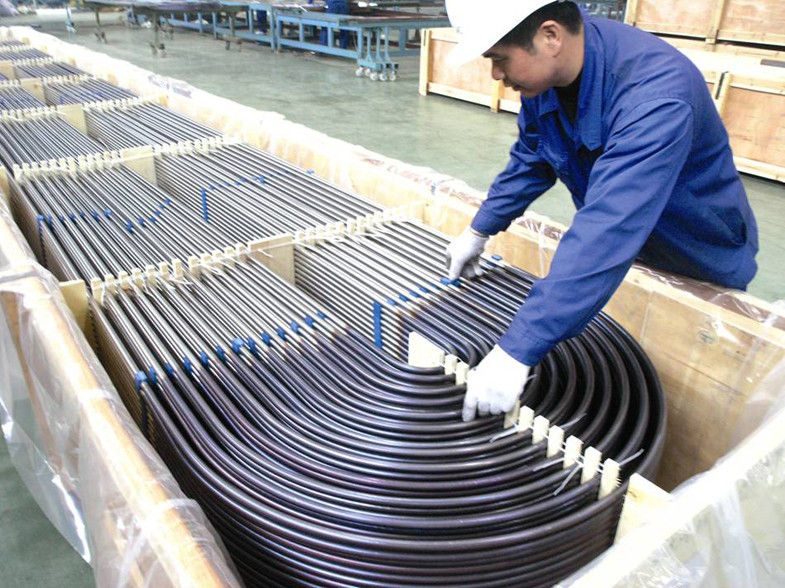

  5. Wooden case package which is strong and suitable for sea transportation is our main method to pack the pipes. And the economical packing method such as packed in bundles is also welcomed by some customers.
  6. The tolerance control we use is +/-0.1mm on both inside and outside Diameter and Wall Thickness, which is much higher than international standard ASTM, DIN.
  7. The surface condition is one of our main advantages: in order to meet different requirements for surface condition, we have annealing and pickling surface, bright annealing surface, OD polished surface, OD & ID polished surface etc.
  8. In order to keep the inside surface of pipe clean and make it free from deburring, our company develops the unique and special technology --- Sponge Washing with high pressure.
  9. We have complete after-sale service to deal with the problems in time.
